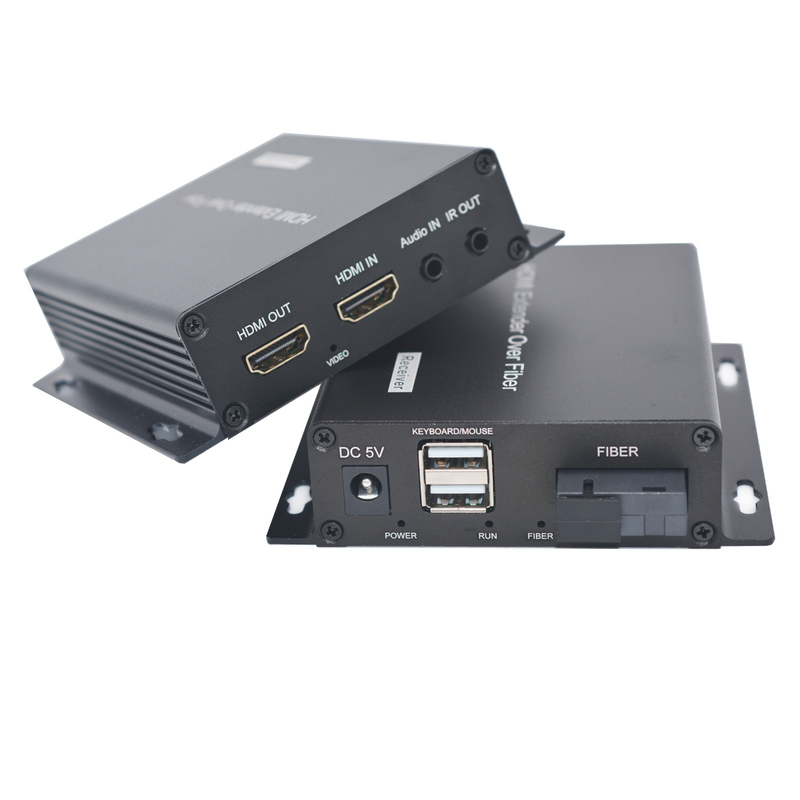

HDMI Over Fiber Extender
WAT-HDMI-L-IR
1. Commercial-grade design, high quality.
2. Support resolution 1920*1080P@60Hz max, backward compatible.
3. Support independent analog of 3.5mm audio.
4. Support KVM function (keyboard and mouse), remote control HDMI.
5. Support point to point, point to many transmission through ethernet switches (up to 255 points).
6. Support single-mode transmission distance of 20KM (regular), can customize up to 120km (OEM). multimode up to 1Km (optional).
2. Support resolution 1920*1080P@60Hz max, backward compatible.
3. Support independent analog of 3.5mm audio.
4. Support KVM function (keyboard and mouse), remote control HDMI.
5. Support point to point, point to many transmission through ethernet switches (up to 255 points).
6. Support single-mode transmission distance of 20KM (regular), can customize up to 120km (OEM). multimode up to 1Km (optional).
Description:
Commercial-grade HDMI extender over fiber is used to extend the transmission of HDMI audio and video signals, are usually used in the HDMI cable limit length cannot meet the transmission distance.This product transmits HDMI audio and video signal to 20KM user through the fiber, up to 120KM, equipment supports TCP/IP network protocol, can realize one transmitter to multiple receiver transmission through ethernet switches, remote transmission while supporting local HDMI output, support infrared return transmission, independent audio transmission, remote control of signal source (host-KVM, TV box-IR infrared), to ensure the stability of the signal while reducing the cost for the user.the EDID built-in audio of commercial-grade HDMI extender over fiber greatly improves the compatibility of the device.The equipment has a long transmission distance, low use cost, convenient installation, good compatibility, and is a stable and efficient transmission mode.
Widely used in information release system, security monitoring, video conferencing system, HD teaching system, LCD splicing Large screen, LED splicing screen, engineering projection fusion and other projects.
Product Type Selection
1.1 HDMI video with local loop out + 1 forward 3.5 audio + 1 reverse IR signal
2.1 HDMI video with local loop out + KVM + 1 forward 3.5 audio + 1 reverse IR signal
support 1080P ; independent audio transmission ; support infrared return ;
local loop out ; TCP/IP protocol ; point to multi-communication
Features
1.HDMI video support maximum resolution 1920*1080P@60Hz downward compatibility
2.Integrated HDCP decrypt engine to receive protected audio and video content
3. EDID transparent transmission mode, automatically matching the signal source and display equipment4.Transmitter supports the local loop out monitoring function
5.Support 24bit-embedded digital audio
6.Support independent analog of 3.5mm audio
7.Support audio
8.Support KVM function (keyboard and mouse)
9.Support reverse IR infrared function
10.Support point to point, point to many transmission through ethernet switches (up to 255 points)
11.Support single fiber/dual fiber (optional)
can customize up to 120km 13.Built-in ESD electrostatic protection circuit, simple to install, plug and play
14.The equipment has a differentiated transmitter (signal source), a receiver (display end)
Specification:
Transmitter panel printed / indicator description
Panel printed description
Receiver panel printed / indicator description
Panel printed description
Connection Diagram
Case 1:one to one
Case 2: one to many
Commercial-grade HDMI extender over fiber is used to extend the transmission of HDMI audio and video signals, are usually used in the HDMI cable limit length cannot meet the transmission distance.This product transmits HDMI audio and video signal to 20KM user through the fiber, up to 120KM, equipment supports TCP/IP network protocol, can realize one transmitter to multiple receiver transmission through ethernet switches, remote transmission while supporting local HDMI output, support infrared return transmission, independent audio transmission, remote control of signal source (host-KVM, TV box-IR infrared), to ensure the stability of the signal while reducing the cost for the user.the EDID built-in audio of commercial-grade HDMI extender over fiber greatly improves the compatibility of the device.The equipment has a long transmission distance, low use cost, convenient installation, good compatibility, and is a stable and efficient transmission mode.
Widely used in information release system, security monitoring, video conferencing system, HD teaching system, LCD splicing Large screen, LED splicing screen, engineering projection fusion and other projects.
Product Type Selection
1.1 HDMI video with local loop out + 1 forward 3.5 audio + 1 reverse IR signal
2.1 HDMI video with local loop out + KVM + 1 forward 3.5 audio + 1 reverse IR signal
support 1080P ; independent audio transmission ; support infrared return ;
local loop out ; TCP/IP protocol ; point to multi-communication
Features
1.HDMI video support maximum resolution 1920*1080P@60Hz downward compatibility
2.Integrated HDCP decrypt engine to receive protected audio and video content
3. EDID transparent transmission mode, automatically matching the signal source and display equipment4.Transmitter supports the local loop out monitoring function
5.Support 24bit-embedded digital audio
6.Support independent analog of 3.5mm audio
7.Support audio
8.Support KVM function (keyboard and mouse)
9.Support reverse IR infrared function
10.Support point to point, point to many transmission through ethernet switches (up to 255 points)
11.Support single fiber/dual fiber (optional)
can customize up to 120km 13.Built-in ESD electrostatic protection circuit, simple to install, plug and play
14.The equipment has a differentiated transmitter (signal source), a receiver (display end)
Specification:
Fiber index |
|
| Wavelength | 1310-1550nm |
| Tx power | ＞-8db |
| Rx sensitivity | ＞-26db |
| Fiber connector | SC default FC / LC / ST (Optional) |
Video index |
|
| Video version | HDMI 1.3 (full-digital) |
| HDCP protocol | 1.2 |
| Maximum pixel clock | 148.5MHZ |
| Resolution | 720 (1440) x 480i @ 59.94/60Hz 720 (1440) x 576i @ 50Hz 720 x 480p @ 59.94/60Hz 720 x 576p @ 50Hz 1280 x 720p @ 59.94/60Hz 1280 x 720p @ 50Hz 1920 x 1080i @ 59.94/60Hz 1920 x 1080i @ 50Hz 1920 x 1080p @ 23.98/24Hz 1920 x 1080p @ 59.94/60Hz 1920 x 1080p @ 50Hz |
| Effective cable length | Less than 10m |
| Physical interface | The HDMI-A interface |
KVM(USB) index |
|
| Version | 1.1 |
| Tx physical interface | USB female type A |
| Rx physical interface | USB female type A |
Audio index |
|
| Sampling frequency | 32k、44.1k、48k、64k、88.2k、96k、176.4k、192kHz |
| Sampling depth | 24bit |
| Dynamic bandwidth | 96db |
| Total harmonic distortion(THD) | -88db |
| Signal to noise ratio（SNR） | 96db |
| Audio input / output impedance | 600Ω |
| Signal level | VPP 3.3V |
| Physical interface | 3.5mm stereo audio socket |
| Signal type | Analog stereo channel |
IR index |
|
| Infrared interface | Standard 3.5mm interface |
| Infrared frequency | Standard with 20-60KHz |
| Signal type | Digit signal |
| Infrared transmission direction | Reverse transmission |
Other indexes |
|
| Working temperature | -20°C ~70°C |
| Storage temperature | -40°C ~85°C |
| Product size | 104*104*28mm |
| Product net weight (Pair) | 0.35/kg |
| Product weight (including outer packaging) | 0.6/kg |
| Product outer packaging dimensions | 275*220*55mm |
| Power supply | 5V 1A |
| Power dissipation |  2.5W |
Transmitter panel printed / indicator description
Panel printed description
| HDMI IN | HDMI signal input |
| HDMI OUT | HDMI signal loop out |
| AUDIO IN | 3.5mm audio input |
| IR OUT | Infrared receiver |
| DC 5V | 5V power supply interface |
| PC | Host USB |
| FIBER | Fiber interface |
- Power amplifier audio signal cannot be directly given to the transmitter, which will lead to the burning machine;
- The transmitter is connected to independent 3.5 audio and the receiver is connected to independent 3.5 audio, embedded audio is off and audio embedding mode;
| FIBER | Light on：fiber signal Light off：no fiber signal |
| RUN | Blinking：the main board works normally Off：the main board failure |
| POWER | On：the device is powered on Off：the device is powered off |
| VIDEO | Light on：video signal Light off：no video signal |
Receiver panel printed / indicator description
Panel printed description
| HDMI OUT | HDMI signal output |
| AUDIO OUT | 3.5mm audio output |
| IR IN | Infrared transmitter |
| DC 5V | 5V power supply interface |
| KEYBOARD | Keyboard input |
| MOUSE | Mouse input |
| FIBER | Fiber interface |
- Power amplifier audio signal cannot be directly given to the transmitter, which will lead to the burning machine;
- The transmitter is not connected to independent 3.5 audio and the receiver is connected to independent audio, embedded audio is on and audio unembedding mode;
| FIBER | Light on：fiber signal Light off：no fiber signal |
| RUN | Blinking：the main board works normally Off：the main board failure |
| POWER | On：the device is powered on Off：the device is powered off |
| VIDEO | Light on：video signal Light off：no video signal |
Connection Diagram
Case 1:one to one
Case 2: one to many
