3G SDI Over Fiber Converters

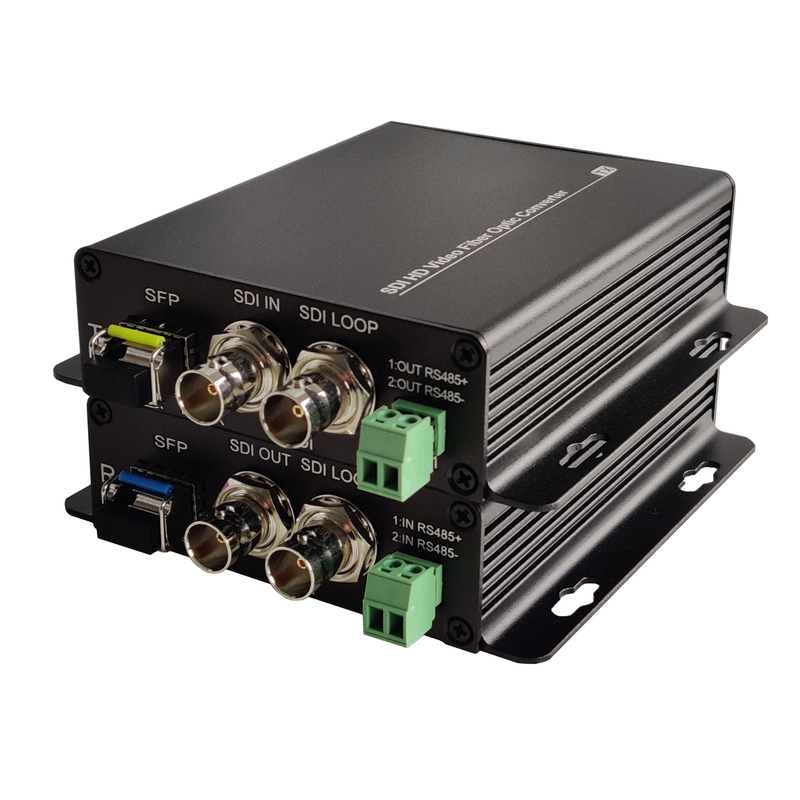

WAT-3GSDI-1V1D-LC
Support 3G-SDI,HD-SDI or SD-SDI video over a fiber optic.Singlemode fiber up to 20Km. Video resolution up to 1920x1080@60Hz. With clock recovery, clock shaping, Broadcast high quality.OEM,ODM,Wholesale price.
Feature
1. Extends uncompressed 3G-SDI, HD-SDI or SD-SDI video over a single fiber optic.
2. Support video resolution 1920x1080@60Hz max, backward compatible.1080P@ 30,25,24Hz and 1080I@60,50Hz.
3. Supports SMPTE 424M, SMPTE 292M, SMPTE 259M or DVB-ASI compliant
4. With clock recovery, clock shaping ,this function can make sure the video image no flicker, high quality design.
5. Support Video loop out function and one reverse RS485 data, Supports embedded digital audio stream.
6. Single-mode and multi-mode compatible, multi-mode transmission distance is 500M, single-mode transmission distance is 20KM
7. Tiny Delay <2ms, Real-Time Video Transmission for Exceptional Quality and Resolution
8. LED Status Provide Rapid Indication of Operating Parameters
9. Plug and play, No need to set
SDI Video:
Electrical & Mechanical :
Data
Environmental
Package Include:
1 x 3G-SDI Transmitter
1 x 3G-SDI Receiver
2x Power supply adapters (US/EU/UK/AU plug is optional)
1 x 3M LC-LC S/M fiber patch cord
1x User Manual
1. Extends uncompressed 3G-SDI, HD-SDI or SD-SDI video over a single fiber optic.
2. Support video resolution 1920x1080@60Hz max, backward compatible.1080P@ 30,25,24Hz and 1080I@60,50Hz.
3. Supports SMPTE 424M, SMPTE 292M, SMPTE 259M or DVB-ASI compliant
4. With clock recovery, clock shaping ,this function can make sure the video image no flicker, high quality design.
5. Support Video loop out function and one reverse RS485 data, Supports embedded digital audio stream.
6. Single-mode and multi-mode compatible, multi-mode transmission distance is 500M, single-mode transmission distance is 20KM
7. Tiny Delay <2ms, Real-Time Video Transmission for Exceptional Quality and Resolution
8. LED Status Provide Rapid Indication of Operating Parameters
9. Plug and play, No need to set
SDI Video:
- Physical Interface: BNC
- Max Resolution: 1920 x 1080 @ 60Hz
- Video Input and Output Impedance: 75Ω (unbalanced)
- Video Input/output Voltage：Typical:1Vpp, Min 0.5Vpp, Max 1.5Vpp
- Video Bits Rate: Max 2.97Gb/s
- Video SDI standard: SMPTE 424M, SMPTE 292M, SMPTE 259M, DVB-ASI
- Support resolution 1080P60Hz 1080P59.94Hz 1080P30Hz 1080P25Hz 1080P24Hz 1080i60Hz 1080i50Hz 1080P50Hz 720P60Hz 720P50Hz PAL(576i50Hz) NTSC(480i60Hz)
Electrical & Mechanical :
- Power supply: AC100-240V,DC5V2A.
- Dimensions:104*104*28mm (LxWxH).
Data
- Physical Interface: standard industry block terminal
- Interface signal: RS485 reverse direction
- Baud Rate:0-400Kbps
- BER < 10 -9
- Operation Mode: Full duplex / half duplex
Environmental
- Operating temperature: -20°C ~ +75°C
- Storage temperature: -40°C ~ +85°C
- Working humidity: 0% ~ 95% (non-condensing)
- MTBF:>100,000 hours
Package Include:
1 x 3G-SDI Transmitter
1 x 3G-SDI Receiver
2x Power supply adapters (US/EU/UK/AU plug is optional)
1 x 3M LC-LC S/M fiber patch cord
1x User Manual
