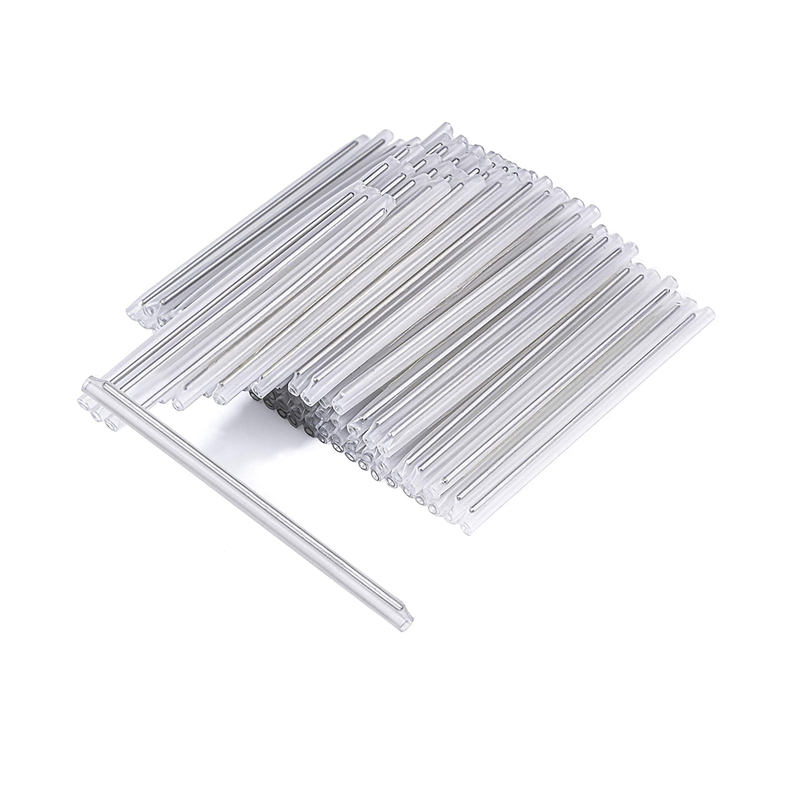

Fiber splice sleeve high quality
PZ- Series
Top Quality,Competitive price, OEM, Custom made, Factory wholesale price.
welcome to contact us .
welcome to contact us .
Feature:
1. The Preshrunk configuration is an excellent design which can make the single holed ends eliminates improper fiber threading, and steel needle never fall out.
2. Smooth deburred stainless steel reinforcing member ends decrease the risk of fiber damage during installation.
3. Strength member is made from "Full hard" stainless steel of 304 high grade and is ground at the edges before polishing to make it completely burr free to avoid rupturing during shrinking. 304 grade gives better corrosion resistance, even in coastal environment. Resistant to heat shocks, no cracking dripping or flowing.
4. Airproof configuration keeping the splice point's good resistance of humidity and temperature.Extended liner length prevents contact between the fiber and the backbone.
5. TOP Quality, Super High Performance. 10 years warranty.
Specification:
Remark:
Special size available to custom made. All dimensions in mm.
L - Length after recovery
Lp - Pin length
D - Outer diameter after recovery
Dp - Steel Pin diameter
d - Hole diameter before recovery
Packing: 100pcs per bag.
1. The Preshrunk configuration is an excellent design which can make the single holed ends eliminates improper fiber threading, and steel needle never fall out.
2. Smooth deburred stainless steel reinforcing member ends decrease the risk of fiber damage during installation.
3. Strength member is made from "Full hard" stainless steel of 304 high grade and is ground at the edges before polishing to make it completely burr free to avoid rupturing during shrinking. 304 grade gives better corrosion resistance, even in coastal environment. Resistant to heat shocks, no cracking dripping or flowing.
4. Airproof configuration keeping the splice point's good resistance of humidity and temperature.Extended liner length prevents contact between the fiber and the backbone.
5. TOP Quality, Super High Performance. 10 years warranty.
Specification:
| Preshrunk Fiber Optic Fusion Splice Protection Sleeves |
 |
| Part No. | L | Lp | D(OD after recovery) | Dp(Steel needle OD) | d(Hole dia. before recovery) | Steel needle grade | Color | Regular stock |
| PZ-60B | 61 | 54 | 2.5+/-0.1 | 1.2 | 1.5 | 304 | clear | √ |
| PZ-45B | 45 | 40 | 2.5+/-0.1 | 1.2 | 1.5 | 304 | clear | √ |
| PZ-60C | 61 | 54 | 2.4+/-0.1 | 1.0 | 1.5 | 304 | clear | √ |
| PZ-45C | 45 | 40 | 2.4+/-0.1 | 1.0 | 1.5 | 304 | clear | √ |
| PZ-40C | 40 | 35 | 2.4+/-0.1 | 1.0 | 1.5 | 304 | clear | √ |
Remark:
Special size available to custom made. All dimensions in mm.
L - Length after recovery
Lp - Pin length
D - Outer diameter after recovery
Dp - Steel Pin diameter
d - Hole diameter before recovery
Packing: 100pcs per bag.
