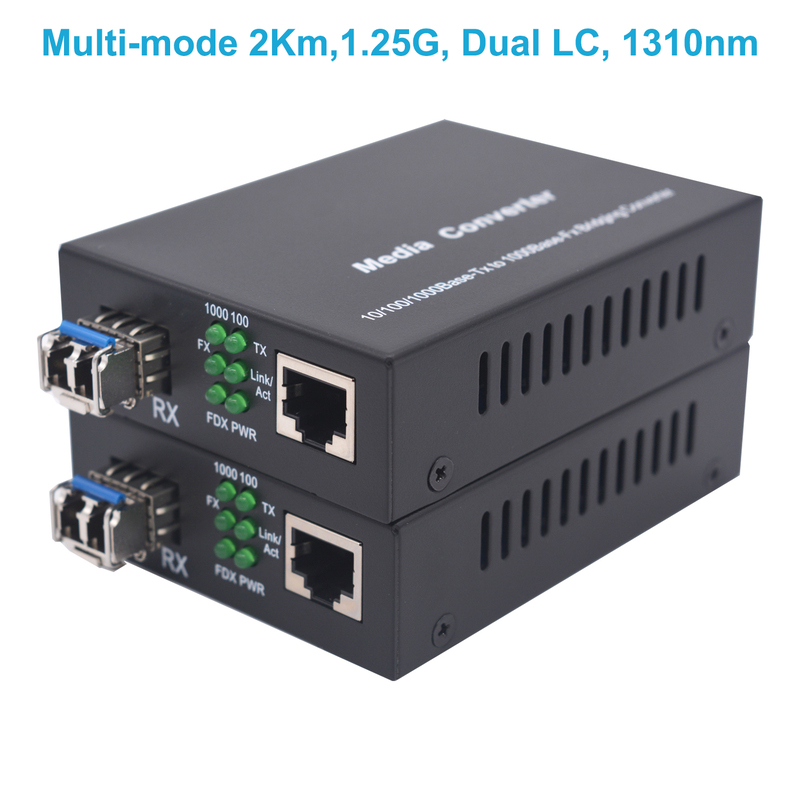

Gigabit Multi-Mode Fiber Ethernet Media Converter
WAT-1GE-MM-SFP-2LC-1310
1.25G, Multi-mode, Dual LC port, Wavelength 1310nm,Transmission distance up to 2Km. US/EU/UK/AU standard power is optional
Feature:
1. Fiber Port: 2Km SFP transceiver included (1.25G, multimode, Wavelength 1310nm).
2. Fiber Type: SFP MMF, Dual LC.
3. RJ-45 Port: 1 port 10M/100M/1000Mbps, full/half duplex auto-negotiation, MDI/MDIX auto-crossover.Cable Type: UTP/STP Cat.5e for 100 meters.

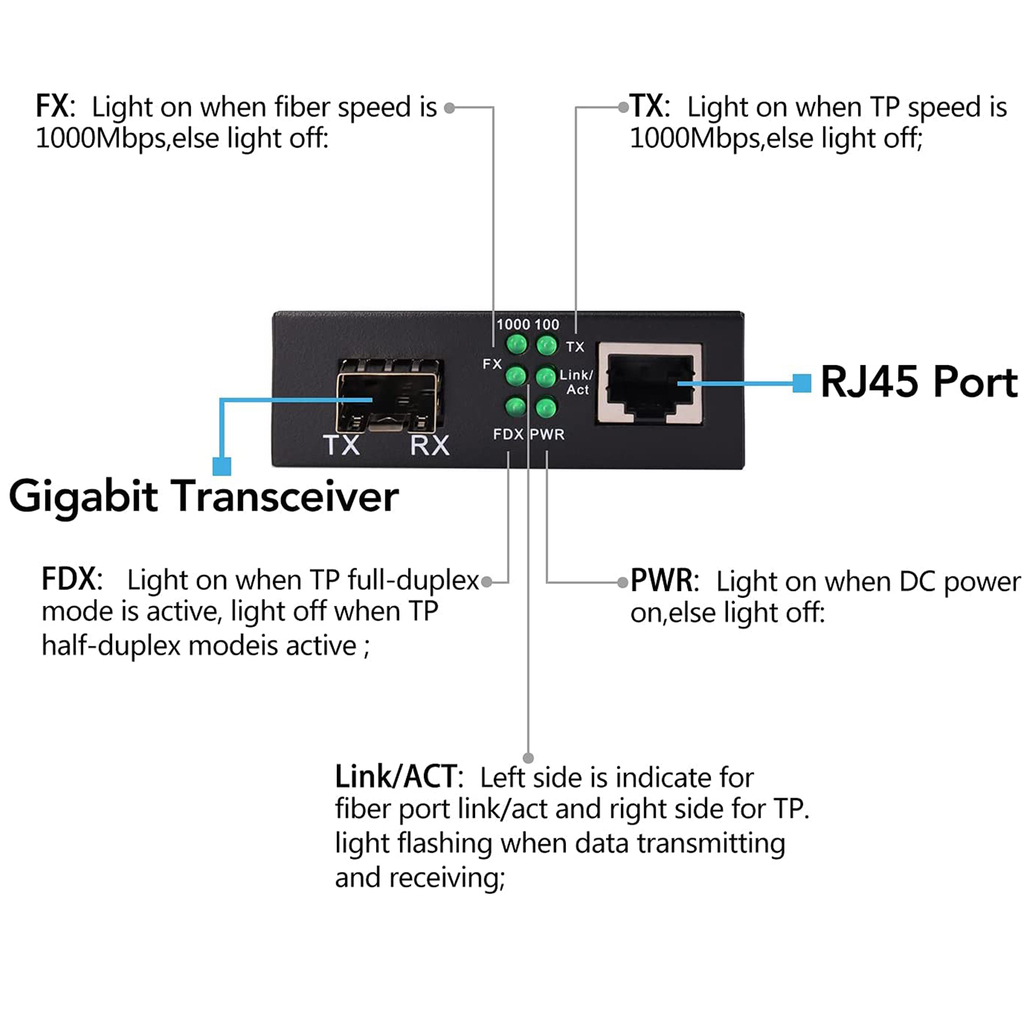

4. Status LED's for TX, FX LINK/ACT, POWER, FDX to easily monitor network status.
5. Plug and Play: Simply plug in optical port and RJ45 port, and it will work immediately.
More Features:
1.Super Heat Dissipation: Air-vent on both sides and metal enclosure provide better heat dissipation, low power consumption and long service life.
2.Lightning protection. Strong anti-interference ability. High-speed and stability signal conversion.
3.Standalone design with simple plug-and-play set-up.
4. Compact size provide more flexible installation options.
Specification:
1.Dimensions:95x72x27mm (LxWxH)
2.Power Adapter working voltage AC100V~240V DC5V1A, UL Certified.
3.Power Dissipation ≤3 watts.
4. High-quality Conversion Chip & Easy Installation, Operating temperature: 0°C to 60°C.
5. Storage temperature: -20°C to 70°C.Humidity:5% to 90% RH.
1. Fiber Port: 2Km SFP transceiver included (1.25G, multimode, Wavelength 1310nm).
2. Fiber Type: SFP MMF, Dual LC.
3. RJ-45 Port: 1 port 10M/100M/1000Mbps, full/half duplex auto-negotiation, MDI/MDIX auto-crossover.Cable Type: UTP/STP Cat.5e for 100 meters.
4. Status LED's for TX, FX LINK/ACT, POWER, FDX to easily monitor network status.
5. Plug and Play: Simply plug in optical port and RJ45 port, and it will work immediately.
More Features:
1.Super Heat Dissipation: Air-vent on both sides and metal enclosure provide better heat dissipation, low power consumption and long service life.
2.Lightning protection. Strong anti-interference ability. High-speed and stability signal conversion.
3.Standalone design with simple plug-and-play set-up.
4. Compact size provide more flexible installation options.
Specification:
1.Dimensions:95x72x27mm (LxWxH)
2.Power Adapter working voltage AC100V~240V DC5V1A, UL Certified.
3.Power Dissipation ≤3 watts.
4. High-quality Conversion Chip & Easy Installation, Operating temperature: 0°C to 60°C.
5. Storage temperature: -20°C to 70°C.Humidity:5% to 90% RH.
