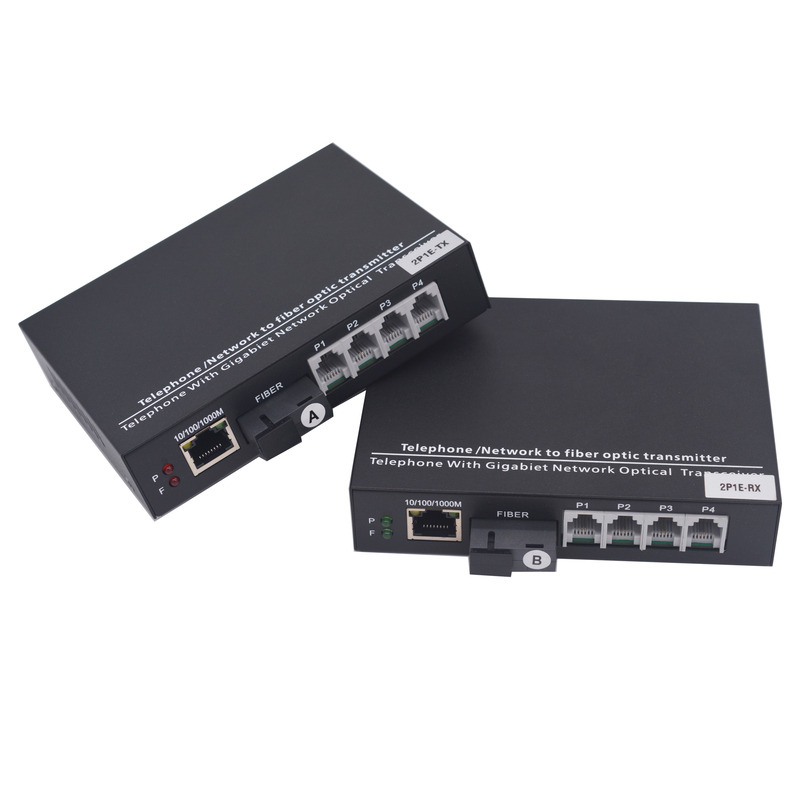

2 POTS Telephone Extender over Fiber
WAT-PCM2CH-1GE
2 x RJ11 Telephone and 10/100/1000Mbps Gigabit Ethernet Over Fiber Converters Extenders - PCM Voice Over Fiber Optic, Universal Single Mode 20Km and Multimode 500m, A pair.
OEM & Customized for specail requirement is available . Note: P1 & P2 is usable. P3 & P4 is empty.
2/4/8CH is optional.
OEM & Customized for specail requirement is available . Note: P1 & P2 is usable. P3 & P4 is empty.
2/4/8CH is optional.
Feature:
1. Extend PCM Voice Telephones and Network signal: 2 Independent telephone lines + 1 Gigabit Ethernet (100/1000 Mbit/s) port through same fiber optic cable to far end. Suitable for Both Fiber Types (Single-mode and multimode). Single-mode fiber for a long distance up to 20 km(12miles), Multimode fiber for a distance up to 500m(0.31miles)
2. Support Called id, Ring and Fax function, No Delay Transmission and Protocol Support: Unlike VoIP products - these converters transmit signals directly over fiber cables, thus offering NO DELAYS, plus support for fax & legacy applications that is not supported by VoIP lines.
3. With our Telephone over Fiber optic Extender you can get faster speeds, less signal degradation, longer distance data transfer, better reliability, and more flexibility. Using a fiber optic cable can decrease costs over time because of the durability and reliability of the fiber cables. Fiber optic cables carry a low rate of bit error due to the fiber being highly resistant to electromagnetic interference.
4. Compact design. Sturdy Metal outer box, Bilateral heat dissipation make working life longer.
5. LEDs for power supply and optical fiber link, data status indication can monitor the operating status of the system.
6. Simple to Install, Plug and Play, No setup or configuration needed, SC connector for fiber optical port, RJ-11 connector for telephone ports and RJ-45 for Ethernet.
Specification:
Phone RJ11 port specifications:
1.Voice coding: PCM coding, 64Kbps per voice
2.Crosstalk attenuation: ≥65dB
3.Balanced noise: ≤63.7dBmop
4.Insertion loss: -3 ± 0.75dB
5.Frequency characteristics: 300 to 3400 Hz (-0.6 to +3 dB)
6.Relay port (FXO): connected to the switch
7.Two-wire AC input impedance: 200+680//0.1 Ω (three components)
8.Ringing voltage: 35 ~ 150V
9.Ringing frequency: 17~60HZ
10.Return loss: 20 db
11.User Interface (FXS): Connect to the user's telephone
12.Two-wire AC input impedance: 200+680//0.1 Ω (three components)
13.User line loop resistance: less than 1KΩ (including phone)
14.Ringing voltage peak-to-peak value: 110~150V
15.Ringing frequency: 22~28HZ
16.Feed voltage: 28V
17.Feed current: 20~50mA;
18.Return loss: 20 db
19.Bell flow: AC90 plus or minus 15V
Ethernet RJ45 port specifications:
1. Rate: 10/100M/1000Mbps, full duplex, half duplex fully adaptive
2. Protocol: Support IEEE 802.3, IEEE 802.1Q (VLAN)
3. Physical interface: RJ45, support AUTO-MDIX (cross line straight line adaptive)
Power supply:
1.Working voltage AC100~240V, DC5V/2A.
2.US/EU/UK/AU power supply adapter is available.
Package include:
1x Telephone over fiber Transmitter
1x Telephone over fiber Receiver
2 x External power supply adapters
1 x Manual
