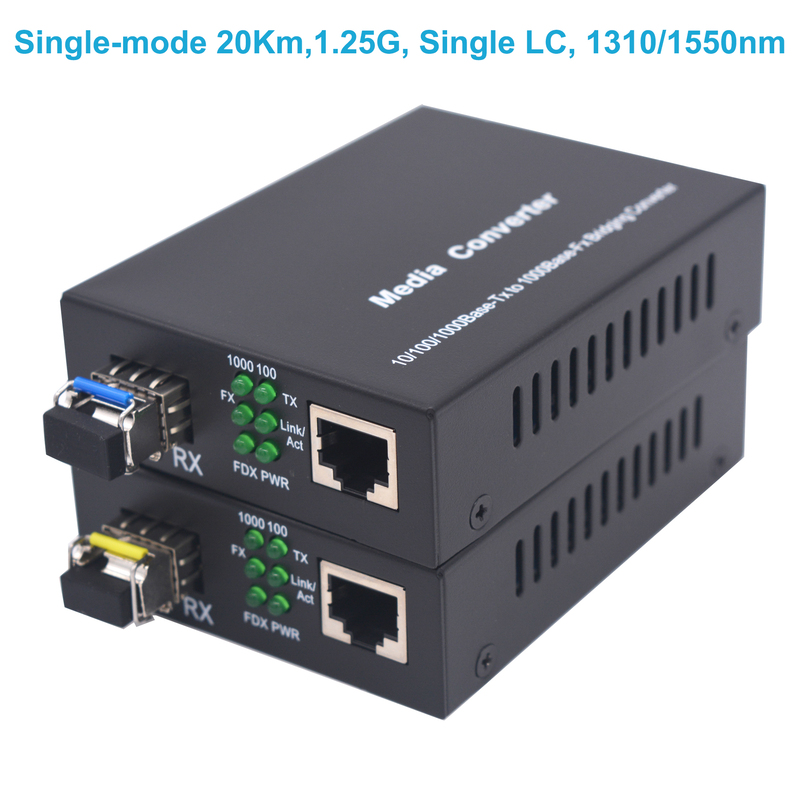

Gigabit Ethernet Singlemode Fiber Media Converter
WAT-1GE-SM-SFP-1LC
1.25G, Single-mode, Single LC port, Wavelength 1310nm/1550nm,Transmission distance: up to 20Km(12.4Miles). US/EU/UK/AU standard power is optional. OEM & Custom made.
Features:
1. Fiber Port: 20KM SFP transceiver included (1.25G, Single-mode, Wavelength 1310nm/1550nm).
2. Fiber Type: SFP SMF, Single LC. Transmission distance: up to 20Km(12.4Miles).
3. RJ-45 Port: 1 port 10M/100M/1000Mbps, full/half duplex auto-negotiation, MDI/MDIX auto-crossover.
4. Cable Type: UTP/STP Cat.5e for 100 meters.
5. Status LED's for TX, FX LINK/ACT, POWER, FDX to easily monitor network status.
6. Plug and Play: Simply plug in optical port and RJ45 port, and it will work immediately.
Specification:
1.Dimensions:95x72x27mm (LxWxH)
2.Power Adapter working voltage AC100V~240V DC5V1A, UL Certified.
3.Power Dissipation ≤3 watts.
4. High-quality Conversion Chip & Easy Installation, Operating temperature: 0°C to 60°C.
5. Storage temperature: -20°C to 70°C.Humidity:5% to 90% RH.
1. Fiber Port: 20KM SFP transceiver included (1.25G, Single-mode, Wavelength 1310nm/1550nm).
2. Fiber Type: SFP SMF, Single LC. Transmission distance: up to 20Km(12.4Miles).
3. RJ-45 Port: 1 port 10M/100M/1000Mbps, full/half duplex auto-negotiation, MDI/MDIX auto-crossover.
4. Cable Type: UTP/STP Cat.5e for 100 meters.
5. Status LED's for TX, FX LINK/ACT, POWER, FDX to easily monitor network status.
6. Plug and Play: Simply plug in optical port and RJ45 port, and it will work immediately.
Specification:
1.Dimensions:95x72x27mm (LxWxH)
2.Power Adapter working voltage AC100V~240V DC5V1A, UL Certified.
3.Power Dissipation ≤3 watts.
4. High-quality Conversion Chip & Easy Installation, Operating temperature: 0°C to 60°C.
5. Storage temperature: -20°C to 70°C.Humidity:5% to 90% RH.
