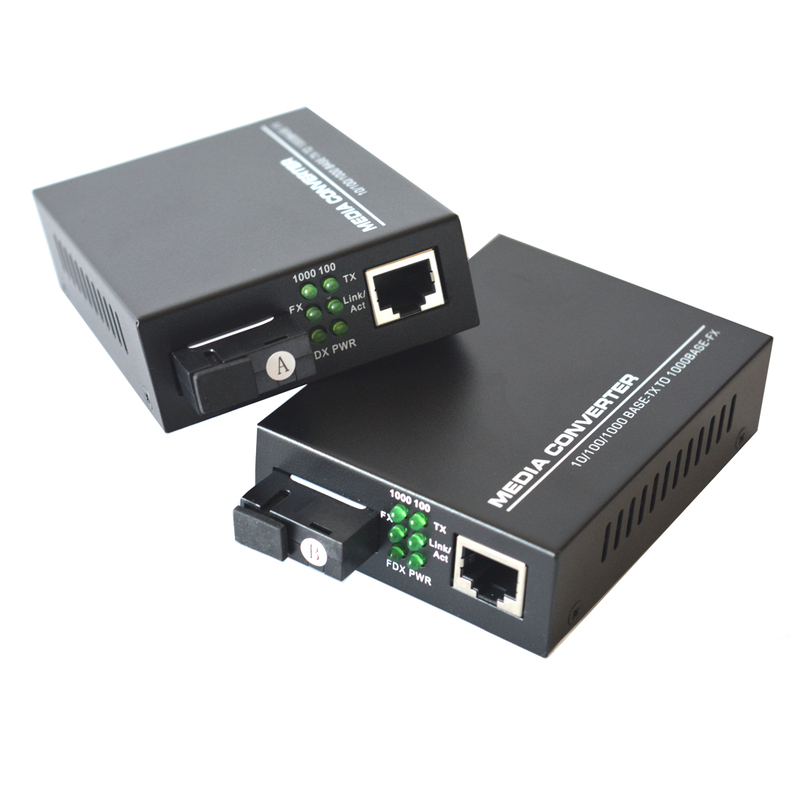

Gigabit Ethernet Fiber Media Converter
WAT-1000M-SC
The Media Converter is used to expand existing Gigabit Ethernet networks. The easy implementation and expansion of 10/100/1000Base-Tx/Fx networks can be further assured with this converter. It can satisfy your requirement for a long distance transmission up to 20km. Its compact modular design facilitates deployment in a narrow desktop location to save space.
Feature:
Optical Port:
1550nm/1310nm Single mode
Transfer Distance: up to 20km (40Km/60Km/80Km/100Km/120Km is optional)
Connectors: SC connector (SFP is optional)
Fiber type: universal single mode fiber
Ethernet Port:
Available speed: auto-detective 10/100/1000Mbps
Full-Duplex and Half-Duplex auto-negotiation
Connector: RJ-45 Connector
MDI/MDI-X connection auto-sensing
Power supply:
AC100~240V,DC5V1A, US/EU/UK/AU standard plug is optional.
Package include:
1 x Transmitter (A)
1 x Receiver (B)
2 x Power supply adapter
1 x user manual
- Optical Port: 1.25Gbps, 1310nm/1550nm, Single-Mode Single SC Optic Fiber
- RJ45 Port: Auto-detective 10M/100M/1000Mbps Cat5 Cable. Complies with IEEE IEEE 802.3/802.3u/802.3z/802.3ab

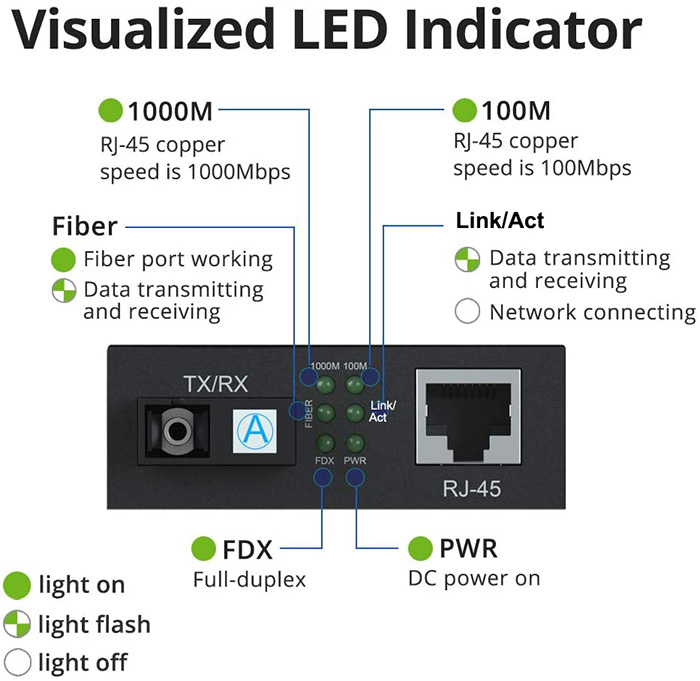

- LED indicators for TX, FX LINK/ACT, POWER, FDX can dynamic feedback link connection state and fault detection to easily monitor network status.
- Compact Design. Its compact modular design facilitates deployment in a narrow desktop location to save space.
- Plug and Play - Simply plug in fiber optical port and UTP RJ-45 port, and it will work immediately.
Optical Port:
1550nm/1310nm Single mode
Transfer Distance: up to 20km (40Km/60Km/80Km/100Km/120Km is optional)
Connectors: SC connector (SFP is optional)
Fiber type: universal single mode fiber
Ethernet Port:
Available speed: auto-detective 10/100/1000Mbps
Full-Duplex and Half-Duplex auto-negotiation
Connector: RJ-45 Connector
MDI/MDI-X connection auto-sensing
Power supply:
AC100~240V,DC5V1A, US/EU/UK/AU standard plug is optional.
Package include:
1 x Transmitter (A)
1 x Receiver (B)
2 x Power supply adapter
1 x user manual
